How To Change A Piggyback Brake Chamber - Parts inside the spring brake chamber.. You can check to see if you have a 4 or 6 channel system by checking which wheel ends have the speed. Spring brake chambers and piggyback spring brake chambers contain a loaded compression spring. 30/30 piggyback air brake chamber kit $44.64. • always work from the side of the spring brake chamber. • when replacing the piggyback spring brake chamber, make sure to block the wheels to prevent vehicle rollaway.

Then, find a spot underneath the damaged brake chamber. You can check to see if you have a 4 or 6 channel system by checking which wheel ends have the speed. You will need to push in the caging tool as far as it will go behind the brake chamber. From doing brake repairs to moving a vehicle, there are many reasons you might need to cage a brake chamber on a c heavy duty or commercial vehicle with an a. The brake chamber's job in a brake system is to use its condensed air pressure and convert it into a force which can stop large vehicles.

The spring brake can be mounted with the mounting bolts in either a vertical or horizontal plane on standard mounting stud centers. Service brake and spring brake chamber replacement on bendix® air disc brakes caution: • when replacing the piggyback spring brake chamber, make sure to block the wheels to prevent vehicle rollaway. This short video will allow you to identify and measure complete, piggyback, & service brake chambers. After removal, uncage the unit and place it inside a brake disposal container. Jan 2, 2010 arizona 0. Exceeds all sae j2318 specifications. The brake chamber's job in a brake system is to use its condensed air pressure and convert it into a force which can stop large vehicles.

30/30 piggyback air brake chamber kit $44.64.

Release brakes and observe that the push rods return to From doing brake repairs to moving a vehicle, there are many reasons you might need to cage a brake chamber on a c heavy duty or commercial vehicle with an a. Replacing front half of brake chamber Service brake and spring brake chamber replacement on bendix® air disc brakes caution: The spring brake can be mounted with the mounting bolts in either a vertical or horizontal plane on standard mounting stud centers. Refer to the possible causes just discussed under service brake not applying adequate force. 2. A bit more money but they last forever and have a 7 year warranty. Does not include a clevis. For brake chambers the parking brake is not holding. • do not service a piggyback spring brake chamber if it has structural damage of any kind. Remove complete spring brake and replace with new unit. And should be repaired as soon as possible. From there, you can take the plug off from behind the chamber itself.

Never work from the front or back. The top of the chamber is the service side, which will activate when the tractor brake pedal is stepped on. From doing brake repairs to moving a vehicle, there are many reasons you might need to cage a brake chamber on a c heavy duty or commercial vehicle with an a. Manufacturer of quality spring brakes and heavy duty products. The chamber may result in the forceful release of the spring chamber and its contents which could cause death, severe personal injury and/or property damage.

Identifying Brake Chambers Complete Piggyback Service Chamber Mor from cdn.shopify.com

Steps for proper disposal of spring brake tandem and piggyback units. Does not include a clevis. See section (8) of this manual for disposal instructions. The spring brake can be mounted with the mounting bolts in either a vertical or horizontal plane on standard mounting stud centers. Property damage, serious injury or death may occur if instructions are not followed completely. Operation & leakage tests operating test 1. Use a ﬂashlight to check for evidence of spring breakage. From there, you can take the plug off from behind the chamber itself.

Replace the brake chamber only with

Replace the whole piggyback spring brake assembly. Replacing front half of brake chamber Jan 2, 2010 arizona 0. From there, you can take the plug off from behind the chamber itself. The bendix piggyback spring brake provides service braking, parking, and emergency braking. The spring brake chamber or emergency brake chamber, is charged to release the spring brakes. Disarm spring chamber before discarding old brake. From doing brake repairs to moving a vehicle, there are many reasons you might need to cage a brake chamber on a c heavy duty or commercial vehicle with an a. See section (8) of this manual for disposal instructions. You will need to push in the caging tool as far as it will go behind the brake chamber. I don't think it is recommended to modify the system. So you can get the exact brake chamber you need. Complete type 30/30 brake chamber assembly.

Complete 30/30 maxi brake chamber. Brake chamber stroke (q) can also be checked while applying and releasing the parking brake. The top of the chamber is the service side, which will activate when the tractor brake pedal is stepped on. • always work from the side of the spring brake chamber. Before you install anchor lock(2 chamber brake assemblies) by extending the emergency air lines to the new chambers, consider the fact that your truck likely has a 4 channel abs system now.

Spring Brakes Trailco Parts from img.yumpu.com

I don't think it is recommended to modify the system. Property damage, serious injury or death may occur if instructions are not followed completely. Proline heavy duty is a u.s. A bit more money but they last forever and have a 7 year warranty. The spring brake can be mounted with the mounting bolts in either a vertical or horizontal plane on standard mounting stud centers. The spring brake chamber or emergency brake chamber, is charged to release the spring brakes. Before you install anchor lock(2 chamber brake assemblies) by extending the emergency air lines to the new chambers, consider the fact that your truck likely has a 4 channel abs system now. Manufacturer of quality spring brakes and heavy duty products.

After removal, uncage the unit and place it inside a brake disposal container.

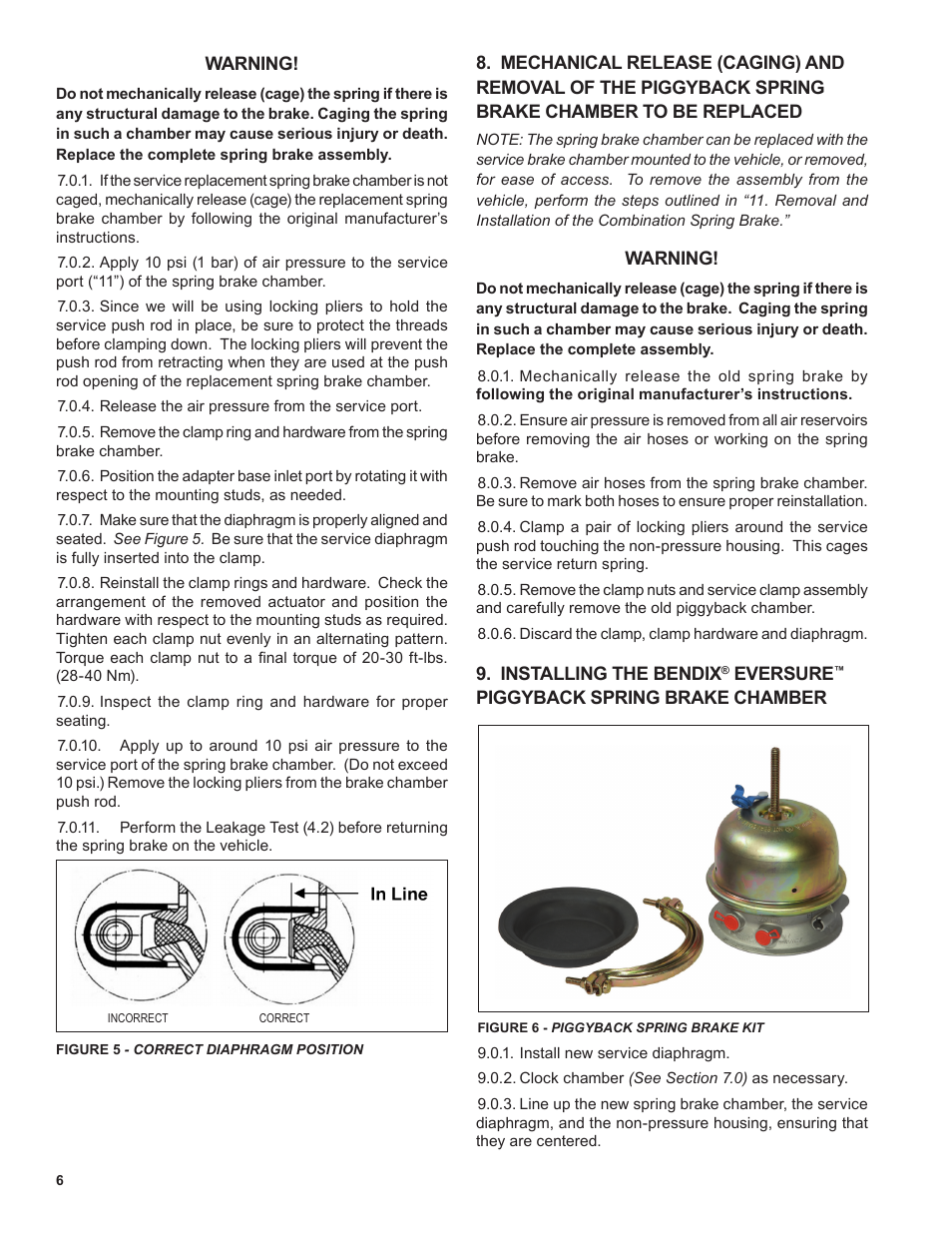

General main spring the bendix piggyback spring brake is made up of the service chamber and the piggyback chamber. The spring brake chamber or emergency brake chamber, is charged to release the spring brakes. Replace the brake chamber only with The actuator can be piped with various system arrangements to be automatically or manually applied under emergency braking conditions. To disarm, use a suitable safety chamber (see page 17). Property damage, serious injury or death may occur if instructions are not followed completely. Allan5oh, jan 18, 2014 #8 + quote reply. Complete 30/30 maxi brake chamber. Replace with the appropriate mgm brakes piggyback. Then, find a spot underneath the damaged brake chamber. Never attempt to disassemble the spring brake chamber And air chamber/spring brake (referred to as a piggyback kit in some of the documentation. Before you install anchor lock(2 chamber brake assemblies) by extending the emergency air lines to the new chambers, consider the fact that your truck likely has a 4 channel abs system now.

This short video will allow you to identify and measure complete, piggyback, & service brake chambers how to change a brake chamber. Service brake and spring brake chamber replacement on bendix® air disc brakes caution:
